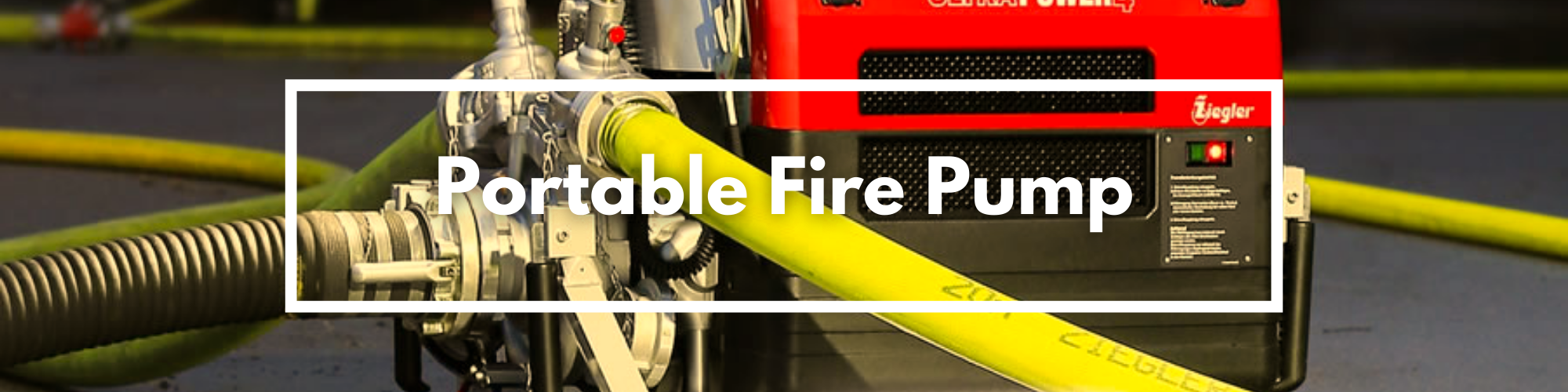

Portable Fire Pump
Fire fighting pump is one of the lightest & most efficient portable fire fighting pump available in its class today. It can be stowed in the equipment lockers of fire tenders very easily. Besides fire fighting; pump can be used for the applications like dewatering, booster tank filling, washing, and etc. Light weight aluminum alloy components of pump are further heat treated & hard anodized for increased strength & life.
Application
- Fire Fighting
- De-Watering
- Flood Relief
- Industrial Washing
Feature of the pump:
- Quick valve
- Lower fuel tank
- Stepless throttle dial
- Fully automatic charger
- Automatic stop function
- High capacity alternator
- Automatic water absorption
- Overheat prevention device
- Damper type pressure gauge
- Double water absorption system & oiless vacuum pump
Product List
Portable Fire Pump (P8)
Portable Fire Pump (P23)
Portable Fire Pump (P14)
Portable Fire Pump (P8M)
Portable Fire Pump (P18M)
Portable Fire Pump (P8)
The compact portable fire pump- ODIN P8 is a lightweight portable centrifugal pump with weight of 21.8 kg. The unit can pump from draft, relay or hydrant. The ODIN P8 portable pump has been developed especially for the demands of urban fire fighting applications where fire apparatuses cannot reach. The ODIN P8 will deliver discharge pressure up to 1.06 MPa and flow to 540 LPM from draft. The unit includes a digital engine overspeed control switch, an oil-free rotary-vane vacuum pump, an electric starter with back up recoil starter and a high-efficient hydraulic pumping unit.
Portable Fire Pump (P23)
The ODIN P23 twin discharge portable fire pump has been developed especially for the demands of urban fire fighting applications. It is powered by 23HP Briggs & Stratton four-stroke engine. It will deliver discharge pressure up to 10.8 bar and flow to 1730 LPM from draft. The pump is equipped with PLC control module and touch screen, which can achieve automatic start and stop, remote control and automatic relay operation.
Portable Fire Pump (P14)
The ODIN P14 high pressure portable fire pump has been developed especially for the demands of forest and rural fire fighting applications. It is powered by 14HP Briggs & Stratton four-stroke engine. It will deliver discharge pressure up to 17.8 bar and flow to 720 LPM from draft. The high-efficient hydraulic design results in high performance in medium-pressure and high-pressure conditions. It is equipped with a stainless steel frame, an integrated control panel, an electric and recoil starting, a gearbox, a 6.6 liters fuel box and an Oil-free rotary-vane priming pump.
Portable Fire Pump (P8M)
The ODIN P23 twin discharge portable fire pump has been developed especially for the demands of urban fire fighting applications. It is powered by 23HP Briggs & Stratton four-stroke engine. It will deliver discharge pressure up to 10.8 bar and flow to 1730 LPM from draft. The pump is equipped with PLC control module and touch screen, which can achieve automatic start and stop, remote control and automatic relay operation.
Portable Fire Pump (P18M)
The ODIN P14 high pressure portable fire pump has been developed especially for the demands of forest and rural fire fighting applications. It is powered by 14HP Briggs & Stratton four-stroke engine. It will deliver discharge pressure up to 17.8 bar and flow to 720 LPM from draft. The high-efficient hydraulic design results in high performance in medium-pressure and high-pressure conditions. It is equipped with a stainless steel frame, an integrated control panel, an electric and recoil starting, a gearbox, a 6.6 liters fuel box and an Oil-free rotary-vane priming pump.
AITO is one of the distributer appointed by the Odin for the Malaysia and South East Asia. Our website contains a variety of brand types to facilitate the customization of customers’ preferences based on the selection of pertinent criteria.
