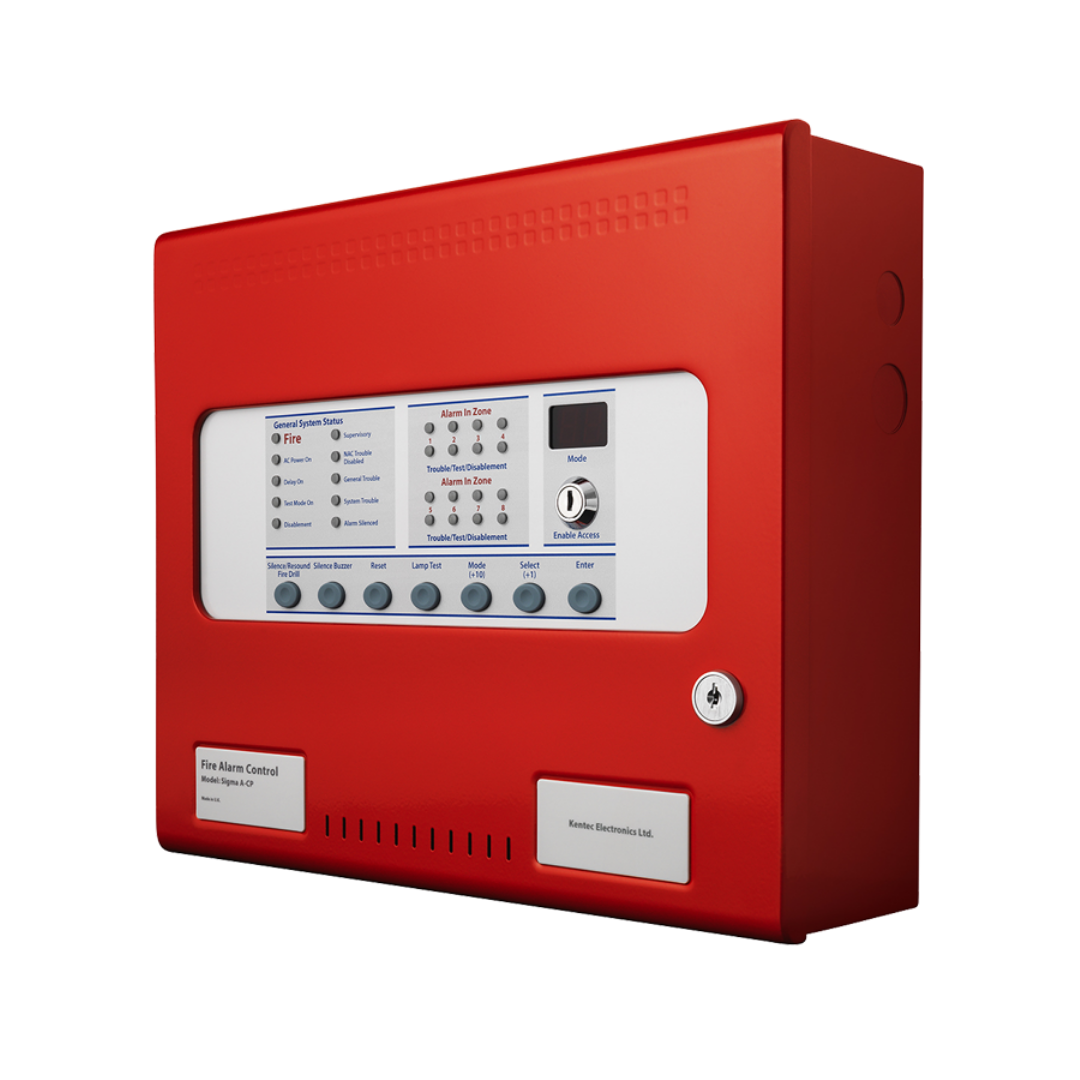

Kentec Sigma A-CP Conventional Control Panel

The Sigma A-CP is a range of conventional fire control panels with an optional built-in communicator. With two, four or eight initiating circuits all panels can be extensively configured via a simple front panel operated programming method.

  • Standard: UL864 listed

  • Construction: 1.2mm mild sheet steel
  • IP rating: IP30
  • Colour – lid & box Red RAL 3002 (optional grey BS 00 A 05 semi-matt)
  • Supply voltage: 115V AC or 230V AC
  • Mains supply fuse: 3 Amp 250V 20mm SB
  • Power supply DC rating: 24V 6.5 Amps
  • Maximum battery size: 12Ah 12V (2 per panel)
  • Trouble contact rating: 30V DC 1 Amp
  • Supervisory contact rating: 30V DC 1 Amp
  • Fire contact rating: 30V DC1 Amp
  • NAC rating: 2A per circuit 4A Total
  • Detection zone current: 1.6 milliamps
  • Detection zone EOL resitor: 6k8 5%
  • NAC ROL resistor: 10k 5%
  • Cable capacity: 12 AWG
  • Operating temperature: -5c to 50c
  • Operating humidity: <95% (non condensing)
