Product Specification : –
– Supply voltage : – 12 -28V DC
– Standby Current : Nil
– Alarm Current : 1.5mA
– Size (Ø) x (H) : 78 x 55 mm
– Net Weight : 92g
SIRIM TEST REPORT 83LL128

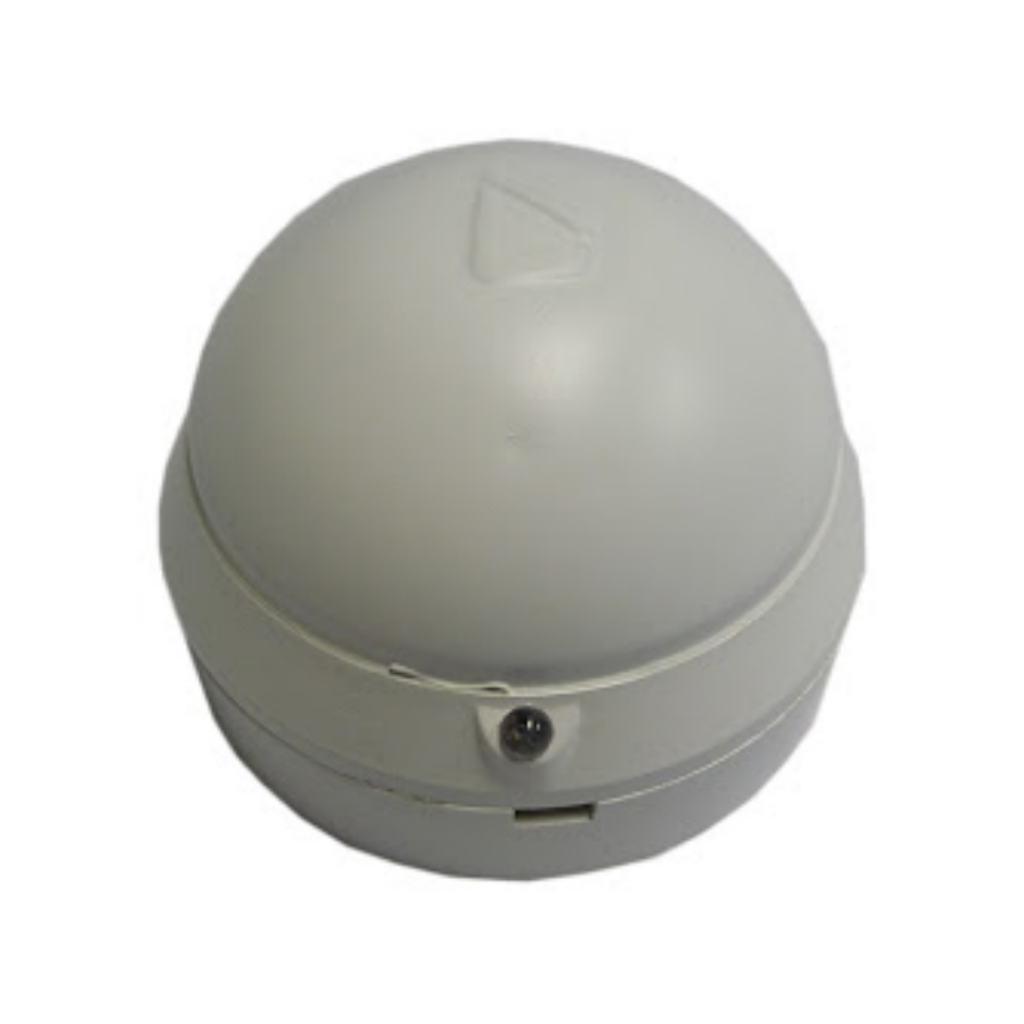

D-103-3 DEMCO heat detector (ROR) SEMs Read More »
Modeel no: AH0333
Part no: FAE-H0333
Description: 2 Wire
Alarm Current @24V DC 470 Ω: 40mA
Operating Temp Range: 0°C to 55°C
Operating Humidity Range: 10% to 93% Relative Humidity
Voltage Range: 12V-30V DC
Standby Current: 25 – 75 μA
Sensitivity Setting: Complies with UL 268

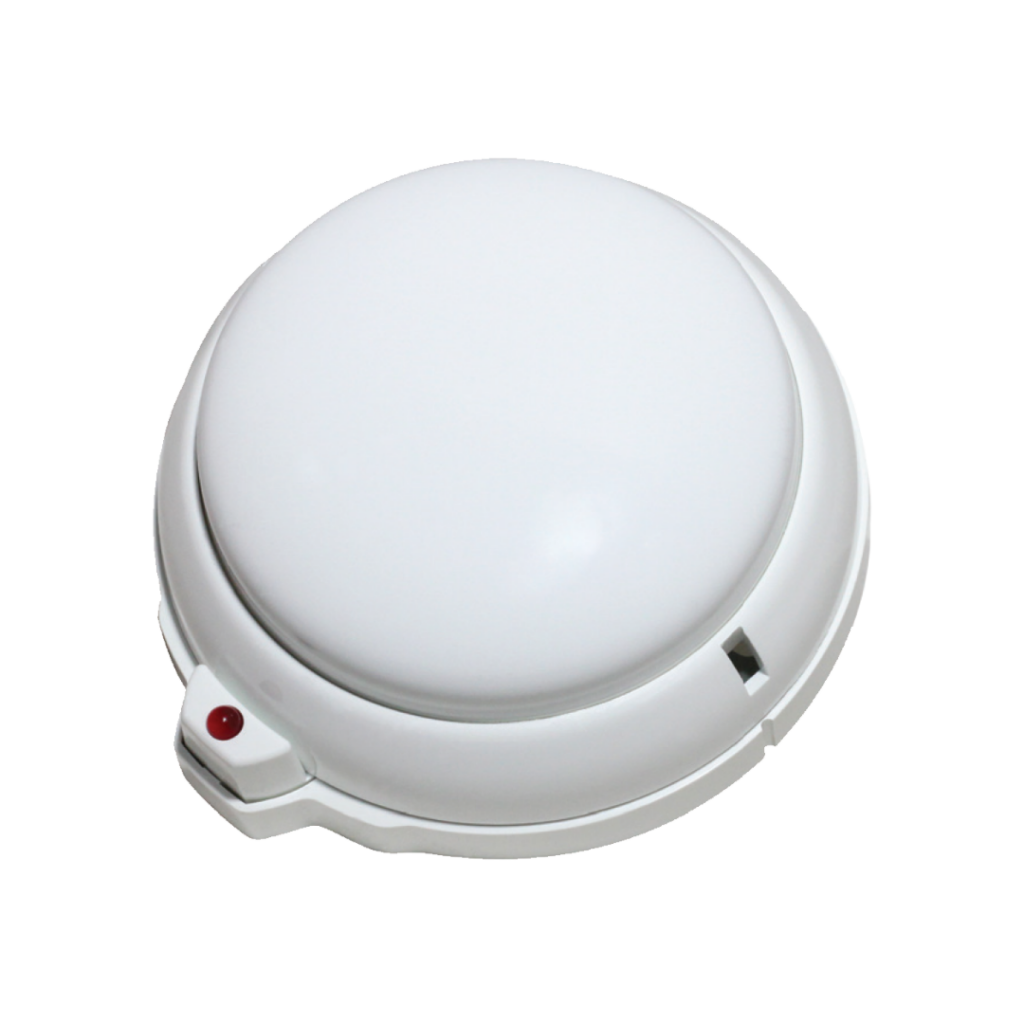

UNIQUE AH033 Heat Detector Read More »
Automatic heat detector with fast semiconductor sensor for reliable detection of fires with distinctive heat. Fire detector with decentralized intelligence, automatic function self-test, alarm and operations data storage and alarm display. A remote indicator can also be connected.
Operating voltage: 8 … 42 V DC
Quiescent current @ 9 V DC : 25 ?A
Alarm current @ 9 V DC : 9 mA
Area to be monitored: 30 m?
Height to be monitored: 7,5 m
Air velocity: 0 m/s … 25,4 m/s
Application temperature: -20 ?C … 50 ?C
Storage temperature: -25 ?C … 75 ?C
Air humidity: < 90 %
Type of protection: IP 40 with base, up to IP 43 with base and option
Material: ABS
Color: white, similar to RAL 9010
Weight approx. 110 g
Detector specification: EN 54-5 A1S : 2002
Dimensions: ?: 117 mm H: 49 mm (62 mm incl. detector base)
ESSER Fixed Heat Detector ES Detect Read More »
The SIGA-HRD is an intelligent fixed temperature/rate-of-rise fire detector. It monitors the temperature of the surrounding air and analyzes the data from the sensor to determine whether to initiate an alarm.
The rate-of-rise heat function quickly detects a fast, flaming fire. The fixed-temperature heat function detects fire when the air temperature near the detector exceeds the alarm point.
Operating voltage 15.20 to 19.95 VDC
Normal operating current 51 ?A
Alarm current 68 ?A
Vibration level 10 to 35 Hz, with an amplitude of 0.01 in.
Rate-of-rise rating 15?F/min (8?C/min) NA
Fixed temperature rating 135?F (57.2?C). Actual alarm point 129 to 141?F (53.9 to 60.6?C).
Maximum spacing 50 ft. (15.2 m) centers
Factory Mutual rating Ultra-fast Special
Compatible bases See Ordering Information
Compatible detector testers Testifire 1000, Testifire 2000 Testifire 2000
Operating environment 32 to 100?F (0 to 38?C), 0 to 93% RH, non condensing
Construction High Impact Engineering Polymer, White
Storage temperature -4 to 140?F (-20 to 60?C)
Agency Listings UL521, CAN/UL-S530, CSFM, FM approved
EDWARDS EST SIGA-HRD Intelligent Fixed Temperature/ Rate-of-rise Heat Detector Read More »
Approvals: UL, CSFM, FM, ULC
Weight: 80g
Colour: White
Materials: Housing Polycarbonate
Product: Diameter 100mm
APOLLO Series 65A Heat Detector Standard Read More »
Ideal in environments that are dirty or smoky under normal conditions. Well suited to warehouses, loading bays and car parks.
Standards: EN 54-5
Approvals: CPR, KRS, LPCB
Weight: 105g
Colour: White
Materials Housing: Polycarbonate
Materials Terminals: Nickel plated stainless steel
Product Length: 42mm
Product Diameter: 100mm

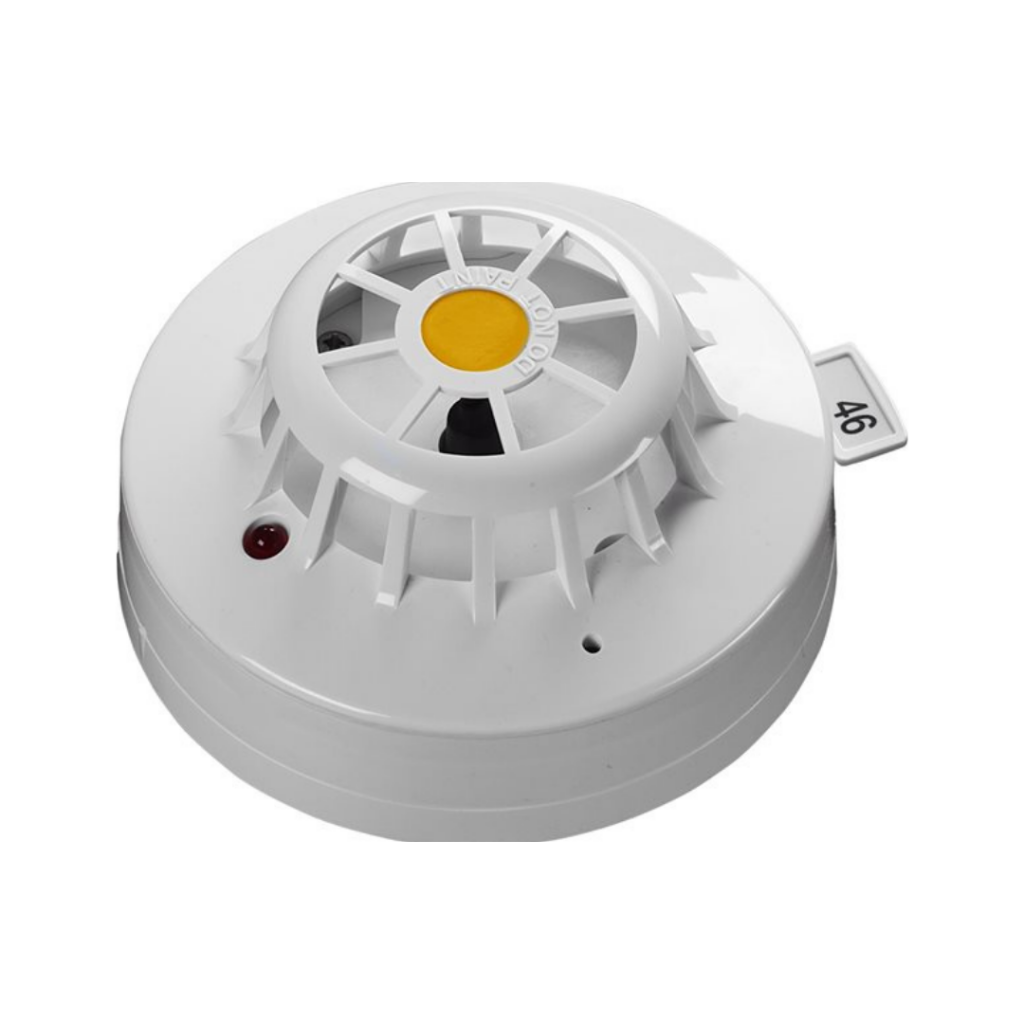

APOLLO XP95 Heat Detector Read More »
A smoke detector might seem like a small and simple device, but it could save your life. Every year, thousands of house fires occur worldwide — and in many cases, the difference between life and death comes down to whether the home had a working smoke detector. Smoke detectors are designed to sense smoke early
Why Every Home Needs a Smoke Detector (and How to Use It) Read More »
What Is a Smoke Detector?A smoke detector is a crucial safety device that senses smoke and emits a loud alarm within a single unit. When properly installed, tested, and maintained, smoke detectors provide an early warning of fire, significantly increasing your chances of escaping. However, some homes lack smoke detectors, or have detectors with dead batteries,
Smoke Detector – What is a Smoke Detector and How it Works? Read More »
FLAME DETECTION RedLook “Flame Detection” uses advanced AI to provide early fire warnings with high accuracy. It detects fire hazards before they break out and has a low rate of false alarms, even from common sources like moving lights or hot lamps. Weldings Moving lights LED’s screens Radiation Heaters Hot exhaust plumes Fluctuating hot lams
